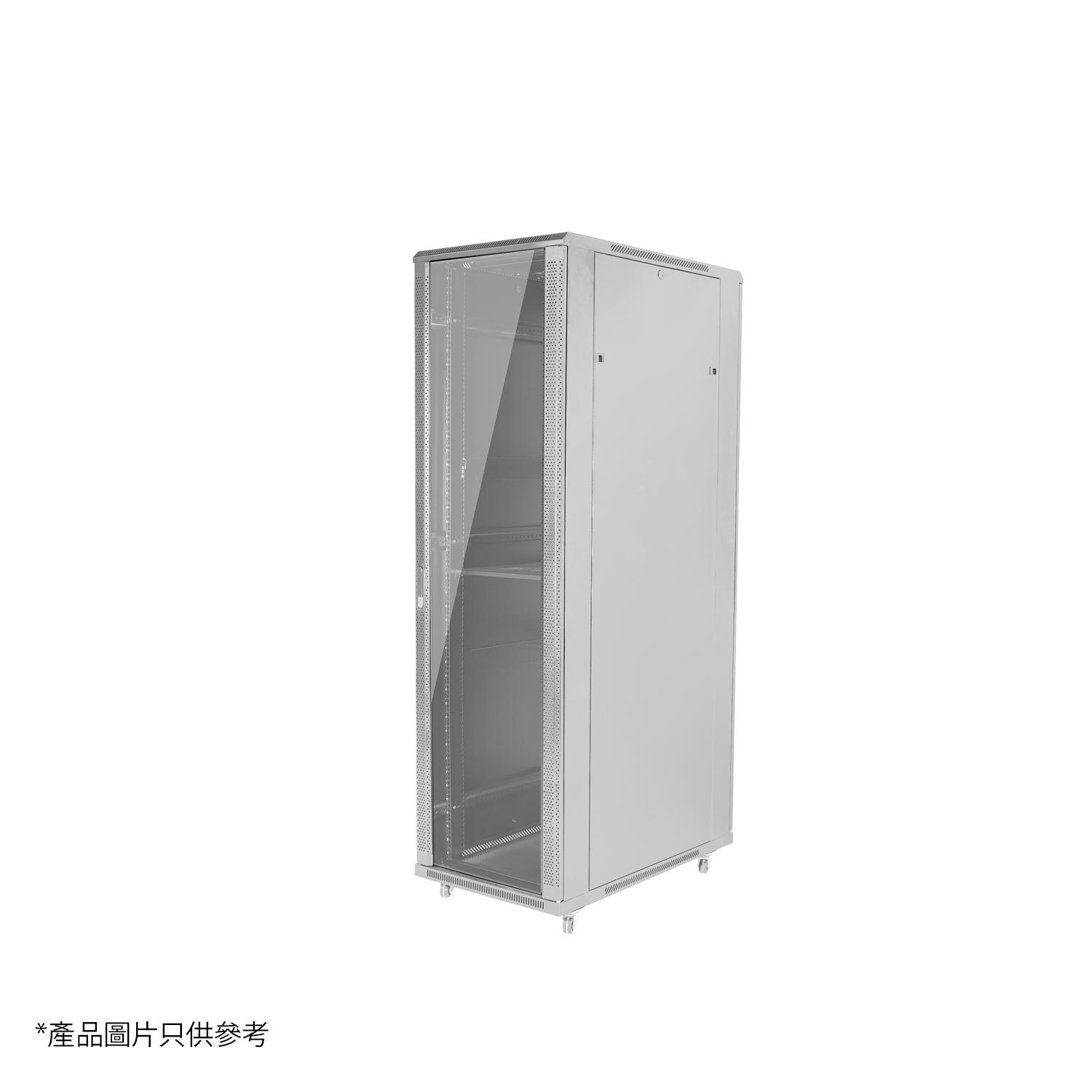

42U Professional Network Cabinet W600 X D800 X H2045mm 1-Fixed Shelf 4-Fan Gray(MC386-6842G)

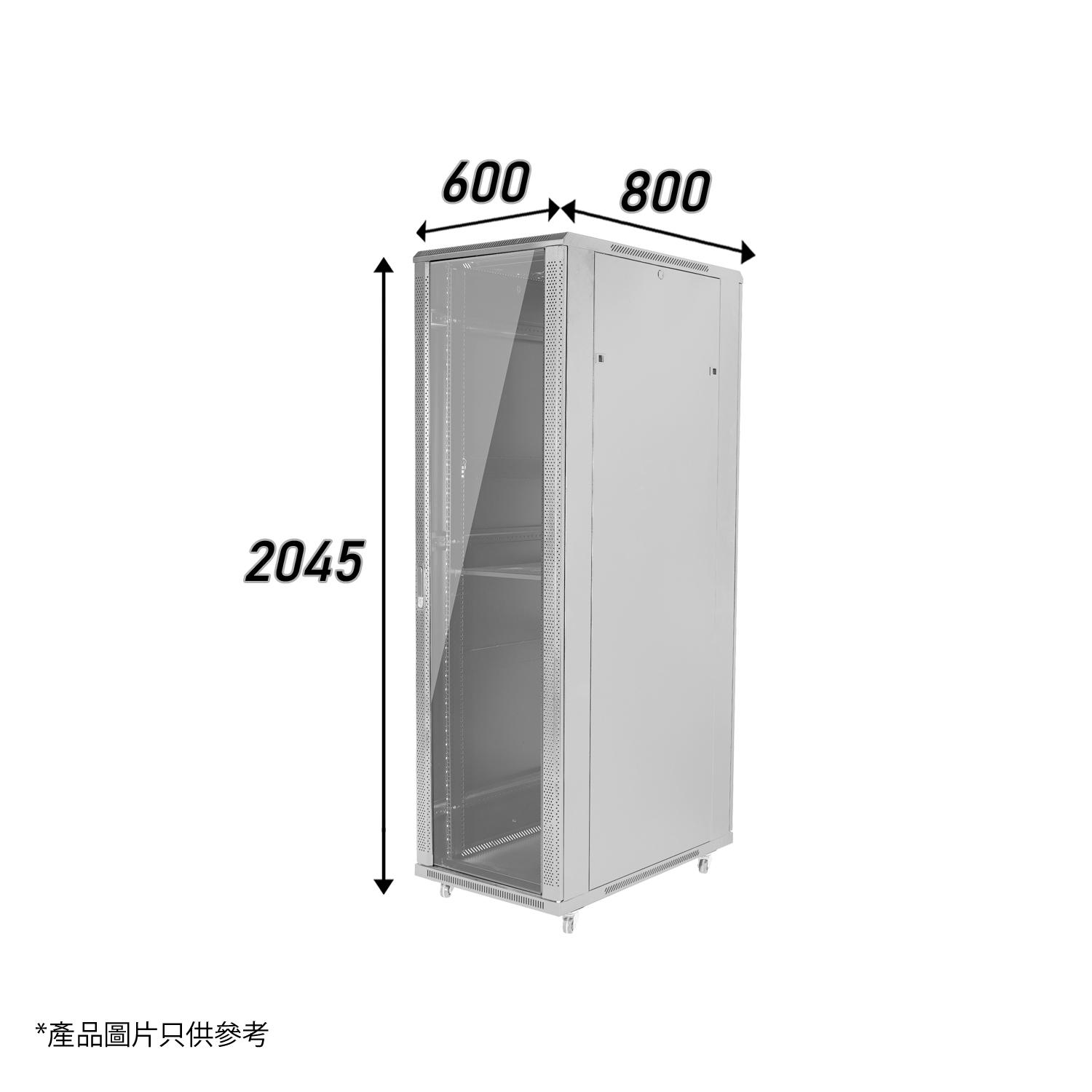

Width: 600mm
Depth: 800mm
Height: 2045mm (42U)
Color: Gray

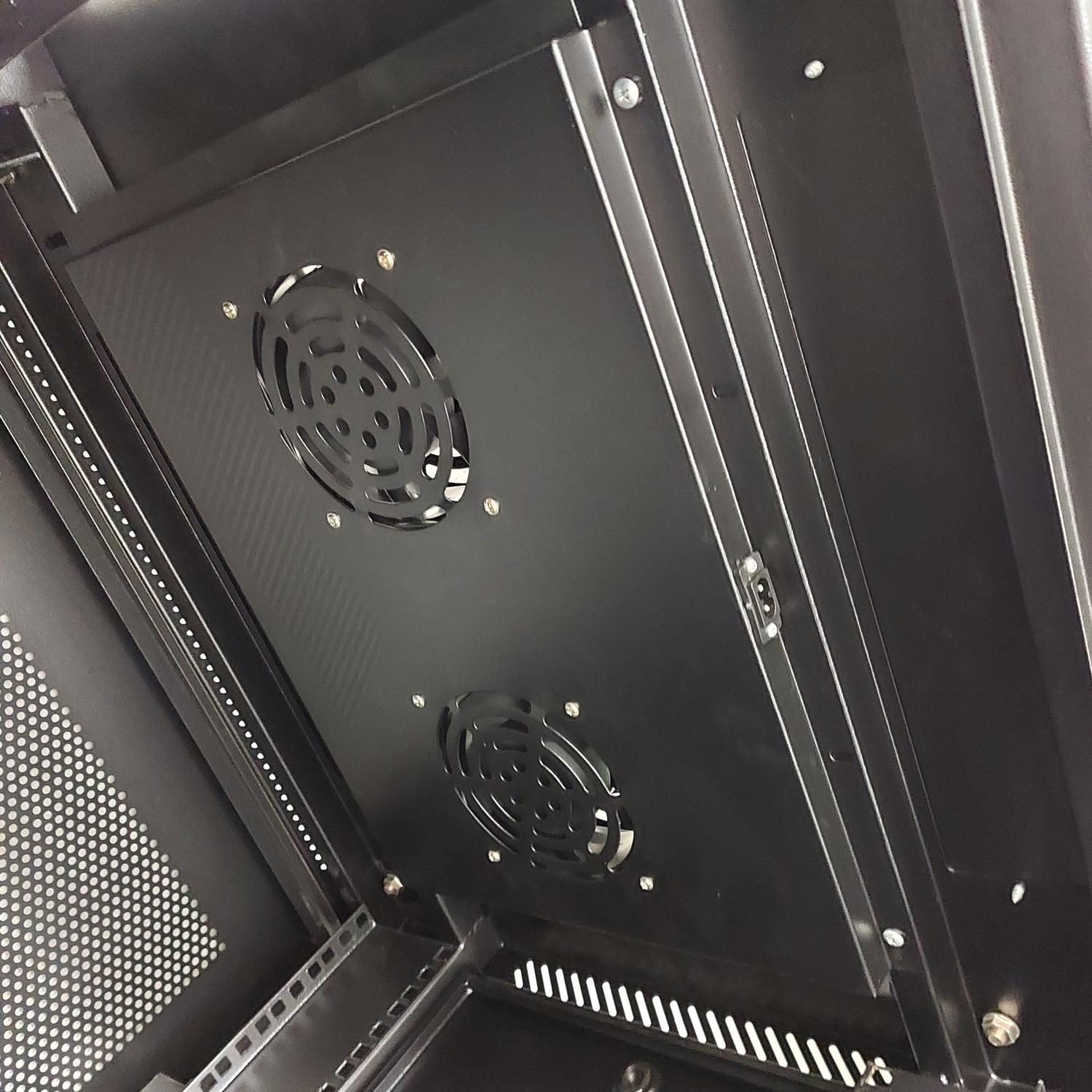

Fan: 4
Shelf: 1 Layer
Weight: 110 kg
Maximum load: 600 kg

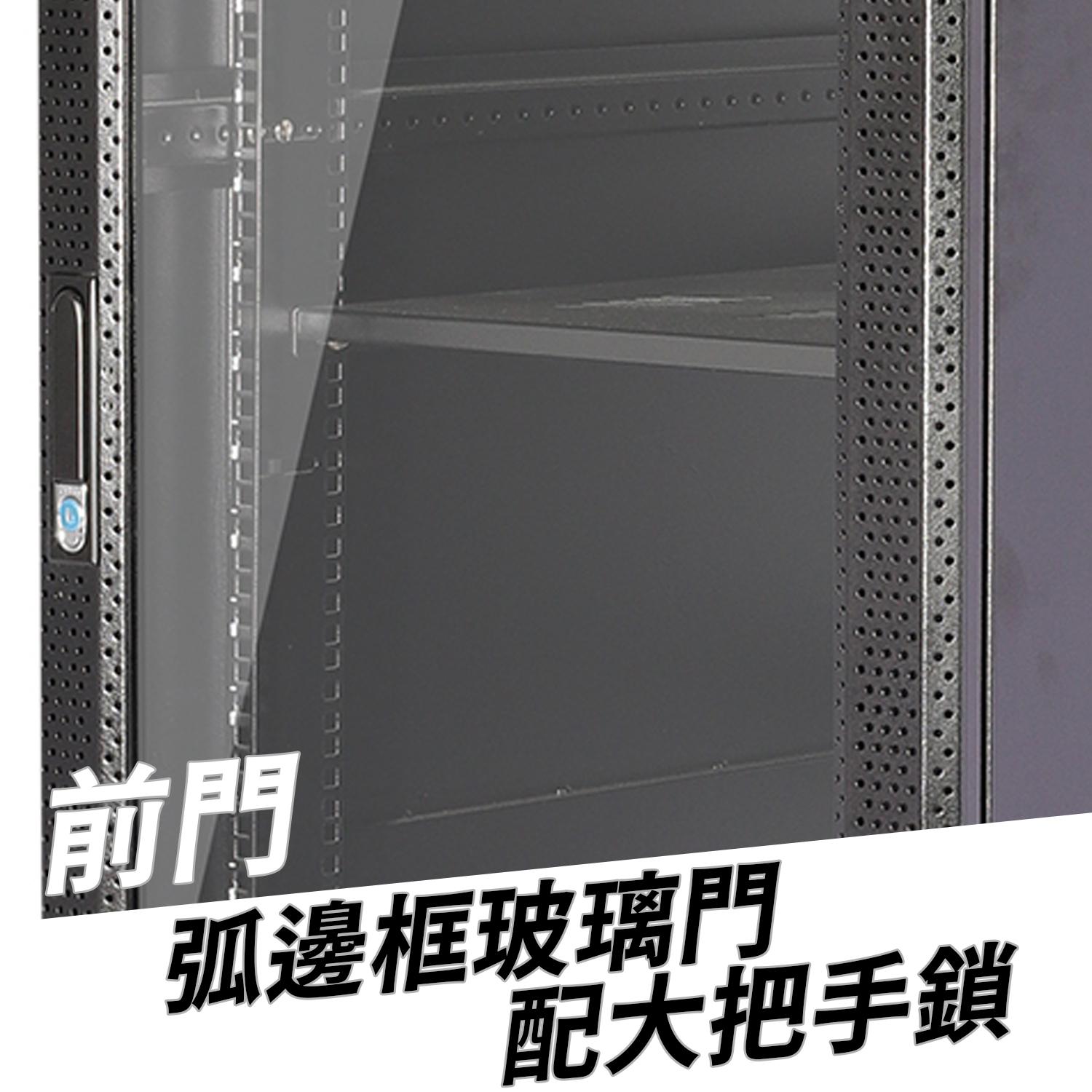

Front door: Curved mesh frame tempered glass door with grand handle lock

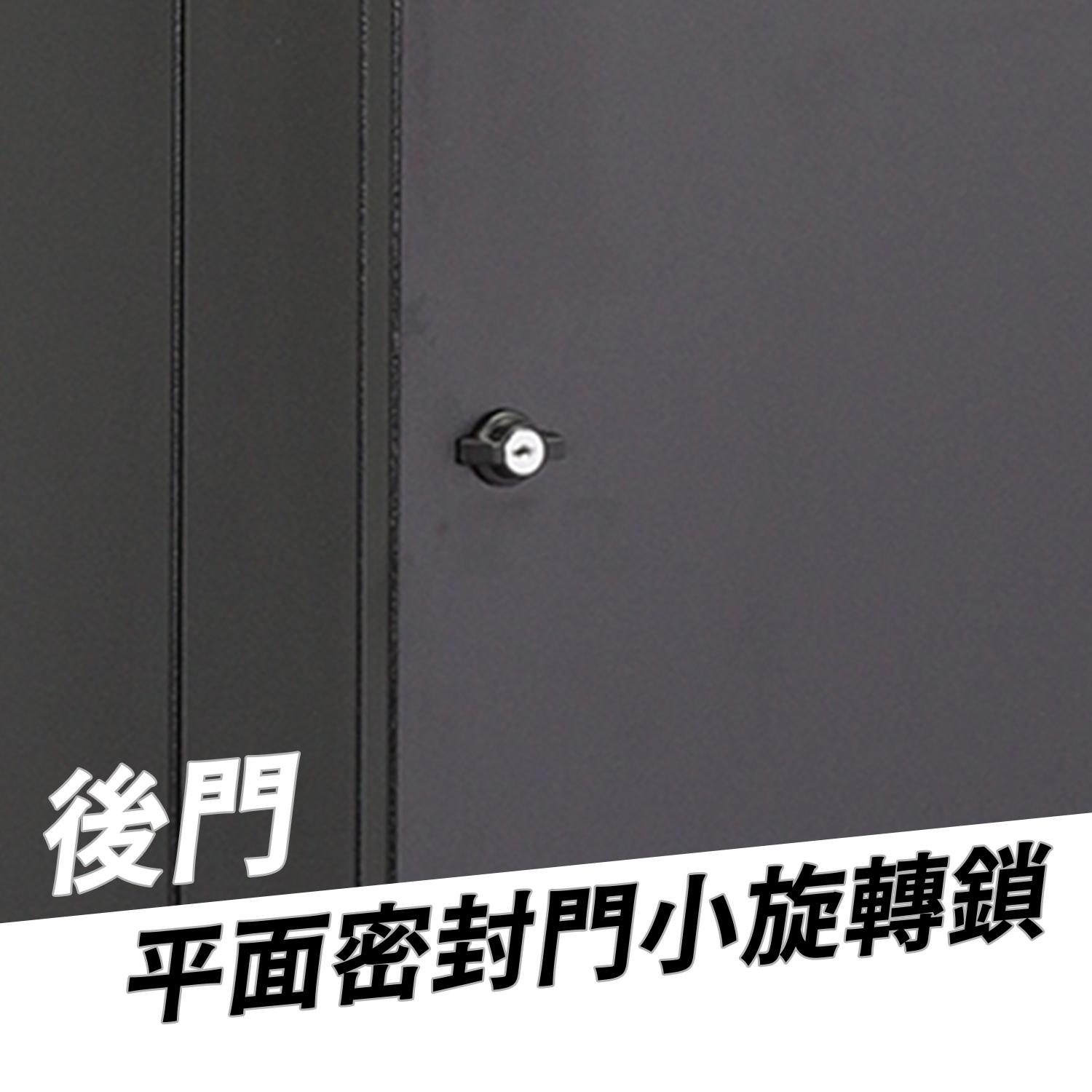

Back door: Sealed flat mesh door with key-free small rotary lock
**Upgrade and switch to other models, only need to make up the difference.
The aMagic Network Cabinet series products have the following craftsmanship and structural features:
High-quality material: Made of SPCC high-grade imported cold-rolled steel plate, ensuring quality.
Compliance with standards: The products comply with multiple international standards, including SI/SIA, RS-310-D, IEC 297-2, DIN41491:PART1, DIN41494:PART7, and GB/T3047.2-92, and are also compatible with ETSI standards.
Easy assembly: The cabinet adopts a fully disassembled and assembled structure, making installation and transportation convenient and fast. It is shipped already assembled, ready to use.
Sturdy and durable: The cabinet has a robust and durable structural design capable of bearing heavy loads, with a maximum static load capacity of 500kg or more.

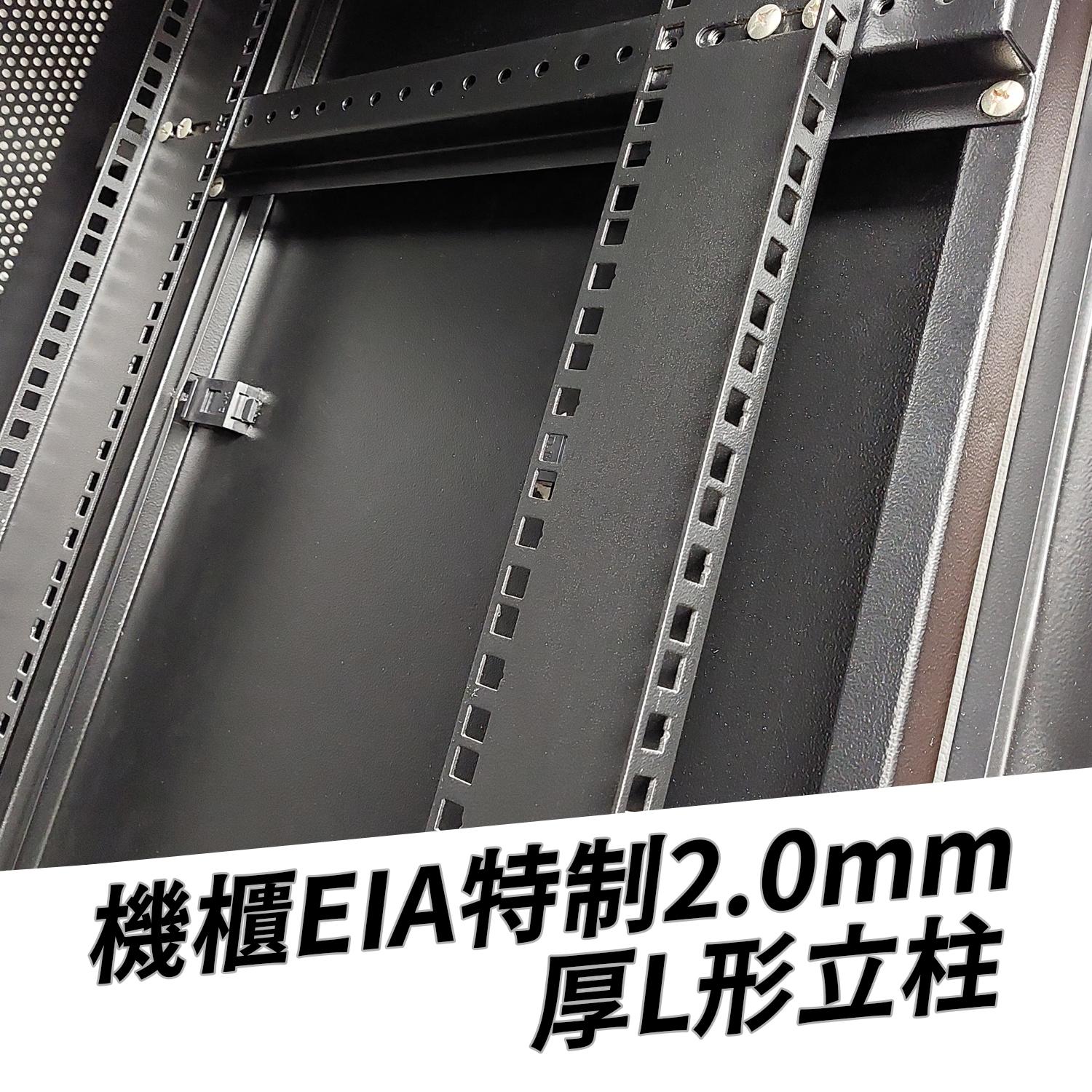

Maximized internal space: The cabinet features specially designed 2.0mm thick L-shaped columns, maximizing the internal space, and has clear and intuitive internal and external "U" number markings.
Multiple door designs: The front door is made of tempered glass in popular international colors, while the left, right, and rear doors are made of steel. The front, rear, left, and right doors are detachable, allowing for easy wiring and providing both aesthetics and functionality.
Cable management holes and ventilation design: The cable management holes on the top and bottom of the cabinet are equipped with grouped cover plates, and the bottom has ventilation and anti-rodent design.
Easy cable routing: The cabinet provides multi-directional cable routing functionality, making cable routing simple and tidy.
Easy cabinet combination: Two cabinets can be combined, with pre-drilled screw holes for secure locking, and the side doors can be removed to connect the two cabinets.
Safety design: The cabinet is equipped with high-quality grounding devices and advanced anti-tipping design to ensure safety.
Convenient mobility: The cabinet base is equipped with high-quality swivel casters and support feet, making it easy to fix and move.
Surface treatment: The surface undergoes processes such as degreasing, acid pickling, rust prevention and phosphating, pure water cleaning, electrostatic powder coating, and high-temperature baking, resulting in a smooth and aesthetically pleasing surface that is resistant to dirt.
Wide application: Suitable for network system engineering in broadcasting and television systems, network systems, video surveillance systems, communication information systems, etc.
Customizable: Various specifications of the cabinet can be customized according to customer requirements, including modifications based on drawings, samples, and structure.
Rich accessory selection: Additional accessories such as movable barrel, sliding keyboard tray, fixed layer board, cable management rack, screws, etc., can be purchased separately.
Multiple color options: The cabinet is available in gray or black.
The aMagic Network Cabinet offers the following series:
MC086 Open Rack: 150 kg load capacity, modular design, convenient transportation, and various accessories can be provided as needed.
MC186 Wall-Mount Cabinet: 60 kg load capacity, front tempered glass door with keyless small rotary lock, rear sealed ANSC cold-rolled steel plate wall-mount design, steel plate thickness approximately 1.0mm~1.8mm.
MC286 Standard Cabinet: 500 kg load capacity, front flat steel frame tempered glass door with keyless small rotary lock, rear standard steel door with keyless small rotary lock, L-shaped column thickness 2.0mm.
MC386 Professional Cabinet: 600 kg load capacity, front curved edge mesh frame tempered glass door with keyless large handle lock, rear standard steel door with keyless small rotary lock, L-shaped column thickness 2.0mm.
MC486 Double-Door Cabinet: 800 kg load capacity, front and rear doors are high-density mesh for ventilation and open with keyless large handle locks, L-shaped column thickness 2.0mm.
aMagic MC286, MC386, MC486 series 960mm \ 1000mm \ 1100mm deep cabinets can accommodate Dell, IBM, HP, and other servers.
Available heights: 6U (370mm), 9U (510mm), 12U (640mm), 18U (995mm), 22U (1170mm), 37U (1830mm), 42U (2045mm), 47U (2270mm), etc.
*Some popular cabinets are in stock in Hong Kong, with large shipments arriving weekly for quick delivery. The aMagic brand was established in 2009 and has long been supplying major network system integrators, telecommunications companies, hospitals, hotels, restaurants, schools, small and medium-sized enterprises, luxury homes, and various government departments.
